SPOILER ALERT!

THE NEXT BIG THING IS HERE AT TEMPOSONICS

At the forefront of innovation, we're constantly developing cutting-edge sensor solutions tailored to your unique applications. Stay ahead of the curve with our latest advancements – discover how our solutions can empower your business today.

LINEAR POSITION SENSORS
FOR INDUSTRIAL APPLICATIONS

LINEAR POSITION SENSORS
FOR MOBILE HYDRAULIC APPLICATION

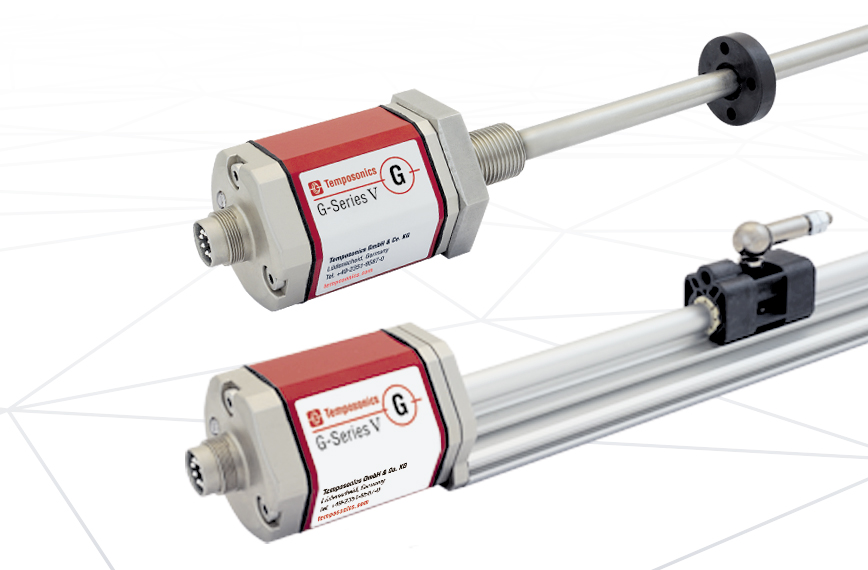

Temposonics® G-Series V
Backward compatible, ready for the future

MH-Series FLEX
Safety rated flexible position sensor for easy in-field serviceability

The fifth-generation sensor series combines the trusted durability of the original G-Series
with the advanced mechanical design of the R-Series V platform.

  • Vibration resistance - now up to 30g
  • Faster and more intuitive configuration using the TempoLink® smart assistant
  • LED for visualization of the sensor status
  • Its rugged and modular mechanical design allows for easy replacement of the sensing element and electronics without breaking the cylinder‘s high pressure seal.
  • Available in both profile (up to 6350 mm / 250 in.)  and rod versions (7620 mm / 300 in.)
  • Outputs: Analog & Digital (PWM and Start/Stop)
Contact Us
  • Innovative modular design consisting of an outer housing, electronic module, and featuring Temposonics’ SMART SE
  • Easy in-field installation and replacement: the SMART SE can bend around obstructions from other machine components requiring only 200 mm of clearance
  • Stroke lengths: from 250…10,500 mm
    (500…5,000 mm with optional pipe)
  • Outputs: J1939-76 and CANopen Safety
  • Applications: safety functions with hydraulic cylinder feedback on aerial work platforms, man-lifts, cranes and other critical measurements
Contact Us



R-Series V FLEX (RF5)
Updated R-Series V with flexible element 		MH-Series SLIM
Ultra slim magnetostrictive sensor for integration in small bore cylinders
  • Easier installation: Smaller diameter fits standard 10 mm pipe. Bend radius reduced to 100 mm for tight spaces
  • Improved Durability: Base unit meets ingress protection  IP68 (3d/3m)
  • Easier Handling: Maximum length of 20 meters can be coiled for shipping and handling
  • Higher Performance:Maintains the R-Series V platform benefits including Industry 4.0 diagnostics
  • Outputs: Analog, SSI, PROFINET, EtherNet/IP™, POWERLINK, EtherCAT®
  • Applications: industrial applications with confined spaces and/or long strike lengths are required
Contact Us
  • Minimal form factor:
    Sensor head:  Ø 20 mm, Sensor rod: Ø 10 mm
  • Sensor design: Embedded and external threaded
  • Stroke lengths:  up to 600 mm
  • Outputs: CANbus and voltage
  • Applications: Compact agricultural, construction and paving machines, fork trucks, material handlers
Contact Us

R-Series V DETACHED (RD5)
Upgraded R-Series V with detached electronics

  • Space-saving installation due to detached sensor electronics housing
  • Backwards compatible with RD4 generation
  • Higher Performance: Maintains the R-Series V platform benefits including Industry 4.0 diagnostics
  • Higher Temperature: Sensing rod supports 120 C with electronics mounted up to 20 meters away.
  • Easier maintenance: Swappable spare electronics and M12 panel mount connector option
  • Outputs: Analog, SSI, PROFINET, EtherNet/IP™, POWERLINK, EtherCAT®
  • Applications: industrial applications in harsh environment, wind mills, metal working plants
Contact Us
