TEMPOGATE® - THE SMART ASSISTANT FOR THE R-SERIES V
The advanced features and smart functions of the new generation as well as TempoGate® make existing and new applications future-proof and ready for Industry 4.0.

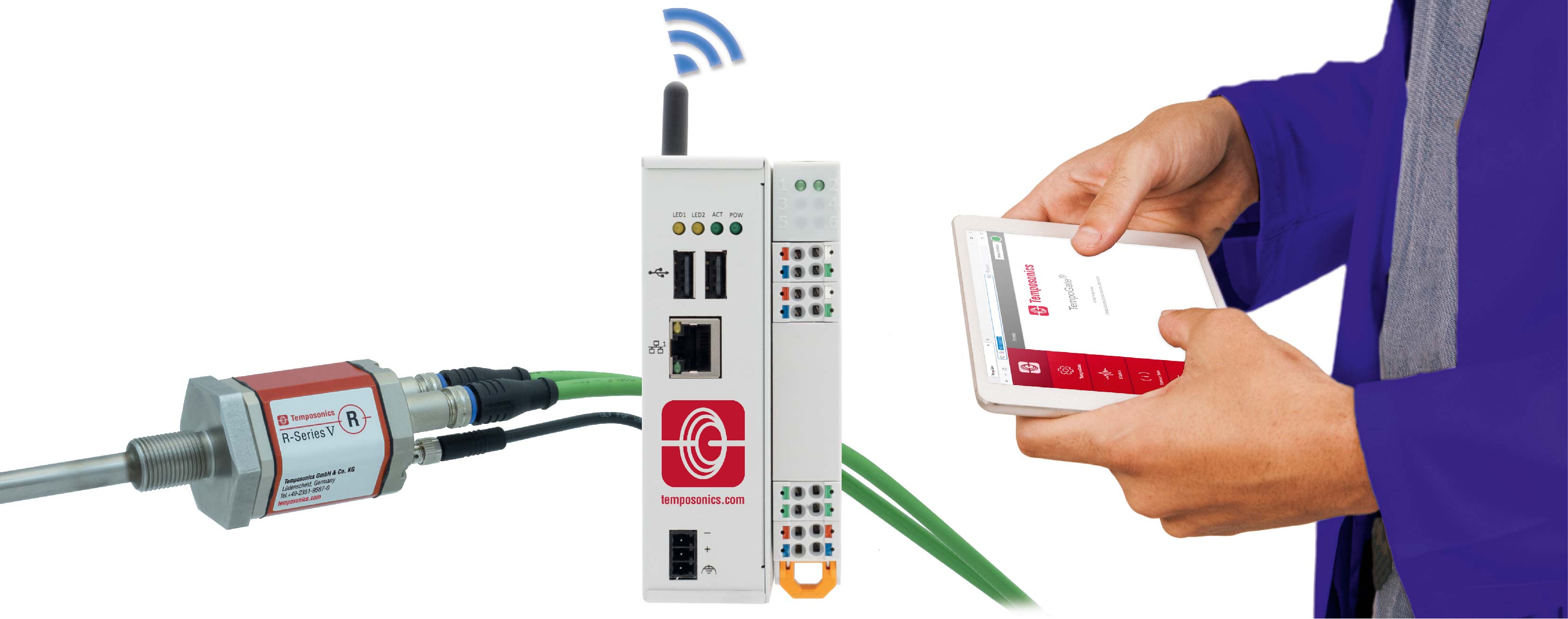

The TempoGate® smart assistant supports all R-Series V sensors with intelligent diagnostics and operational statistics. One TempoGate® can be linked to as many as 24 R-Series V sensors with digital outputs EtherCAT®, EtherNet/IP™, POWERLINK, PROFINET and SSI or available soon for up to 12 R-Series V Analog sensors. Once connected via power supply, the devices are able to communicate bi-directionally.
TempoGate® provides status information and settings of the connected R-Series V sensors and transmits them via OPC UA during operation. Equipped with an OPC UA server, TempoGate® enables users to monitor additional sensor parameters and combine this information with other machine status data. The smart assistant is designed for permanent installation in a control cabinet and transfers the following sensors’ current details via LAN or WIFI network to a graphical user interface:
- Current sensor status such as the total distance travelled by the position magnet, the total operational hours of the sensor and the current temperature inside the sensor electronics housing
- Current parameter settings such as the resolution and the measuring direction
- Sensor information such as the order code and the serial number
Users benefit from the smart integration into the control cabinet, which connects TempoGate® directly into their systems to support condition monitoring and link it to further data of other components of the plant. Temposonics® R-Series V position sensors together with the new TempoGate® smart assistant provides operators with detailed information to improve machine performance, optimize maintenance cycles, and detect issues at an early stage to increase machine uptime.
